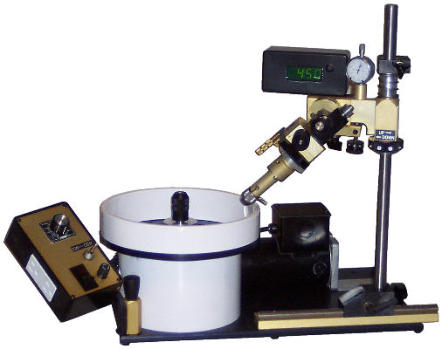

Features You Should Know About
Base: Made of high strength 6061 aluminum alloy, this plate is 18 inches long, 11 inches wide and 3/8 inch hardened
black anodized finish.
Arbor: The arbor shaft is bearing quality stainless steel with a pressed on aluminum platen that rides on precision
preloaded ball bearings to eliminate endplay. The Arbor has adjusting features for aligning the horizontal swing of the dop
Motor: Leeson 1/6hp, 90 volt dc, 3500 rpm, and 48 in oz of torque. (Arbor speed 80 to 2000 rpm)
Drive Belt Tension: Self adjusting.
Upright : This vertical shaft is 3/4” diameter, 17 ½ Inches tall and bearing quality stainless steel.
Height Adjustment: Push button quick release height adjustment allows you to go from one end of the mast to the other.
Plus micro height assembly is a single unit on the upright. Calibration is .007 for each dot. One full turn equals .086.
Horizontal slide: Stainless steel round dove tail, positive lock any position.
Vertical Slide: Positive lock with easy push button release move from one end of the mast to the other.
Digital Read Out: Compact integrated electronic circuitry is easy to view LED display, bright green numbers (9/16" high)
with 1/10º space resolution and continuous synchronous LED reading with movement of dop arm. (pot linearity .5%)
Angle Stop: Is positive with micro fine adjustment.
Dial Indicator: Repeat gauge to be used to read between 1/10º increments of the angle display.
Dop Arm: Is concentrically adjustable to .0002 TIR (total indicated run out). The dop arm can be removed easily with out
removing the index gear. This access allows multiple head operations by commercial faceting or schools.
Precision Collet Chuck: This chuck is a split self–centering type.
Dop Alignment: Is done with a set screw that permits removal and replacement of the dop while maintaining radial
Index Trigger: Is a brass tooth that can be replaced when ever needed.
Index Splitter: (cheater): Radial type rotates the dop arm 10º right or 10º left of the center position. This adjustment is
smooth and with anti–back lash.
Both the Scintillator and the Xristal-Tek come as 8" with 96 index wheel, dial indicator repeat gauge, transfer block, 45º
table dop, set of 12 dops, drip tank, allen wrenches and free wheeling pin.
