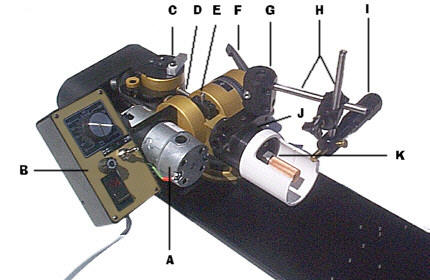

Features You Should Know About A: Leeson 1/15th hp motor, 3,500 rpm 90v dc pm with 9.2 in. oz. of torque. B: Control box with variable speed control, reversing switch, and separate power switch. C: Gear box has push button disengagement of reciprocation and swivel spacer to hold position. D: Spring loaded between gear housing and main body to hold out end play while reciprocation is disengaged. E: Spring loaded push pin for locking the main shaft while tightening or loosening the collet nut. F: Ratchet lever for vertical adjustment for changing the plane of the mandrel. (also has a adjustment for horizontal rotation). G: Pivot block and lock down for micro adjustment.  H: Micro adjustment stabilizer rods have been lengthened to 5" for larger stones. I: Micro adjustment to hold the dop in place while cutting and polishing. J: Now aluminum tubing for more ridgity. K: Collet nose and main shaft is made from stainless steel and accepts a 3/4" open end wrench.     Cylinder curved facets with the same precision as flat facets The O.M.F. (Optical Magnified Facet) unit is the latest state of art in gem cutting. It heralds a new era in faceting by creating new and unique optical and geometric effects. It will provide unlimited possibilities for new designs which were previously impossible. The O.M.F. unit is sure to test and expand the skills of experienced cutters as well as to kindle new levels of creativity in the art of gem cutting. While this unit is not generally for the beginning novice, it can be mastered by almost anyone. O.M.F. unit comes as pictured above with 3/4" open end wrench, 3/8" collet and one set of  mandrels consisting of 1 PolyPro 1200 plated and 2 BATT in the 17 mm size.  $1940.00
OMF  patent #5,044,123
Extra slide plate for Poly-Metric Scintillator $109.00 Extra slide plate for Poly-Metric Xristal-tek  $  74.00 Adapter slotted slide plate for upright masts that are held to their base with a carriage bolt or similar system. Fits most major brand masts on the market today. We can produce adapters for other brands upon request. (must be mast type, price may very) $119.00 Adapter plate for Alpha Taurus $180.00 Adapter plate for Fac-Ette  $180.00

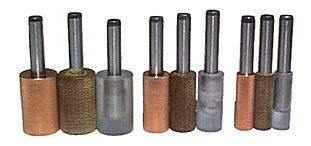

 O.M.F. Cutting and Polishing Mandrels SIZES 13mm 15mm 17mm 19mm 600  PolyPro Import   (plated solid steel) $36.00 $40.00 $44.00 $48.00 1200 PolyPro Import (plated solid steel) $28.00 $32.00 $36.00 $40.00 BATT  (Gearloose) $30.00 $30.00 $35.00 $35.00 Brass (PolyPro) $30.00 $30.00 $35.00 $35.00 Cast Iron (PolyPro) $30.00 $30.00 $35.00 $35.00 Copper (PolyPro) $30.00 $30.00 $35.00 $35.00 Corian $30.00 $30.00 $35.00 $35.00 Darkside (Gearloose) $30.00 $30.00 $35.00 $35.00 Maple (PolyPro) $30.00 $30.00 $35.00 $35.00 Matrix (Gearloose) $30.00 $30.00 $35.00 $35.00 Phenolic (PolyPro) $30.00 $30.00 $35.00 $35.00 Polycarbonate (PolyPro) $30.00 $30.00 $35.00 $35.00
Collets 13 & 15mm mandrels use 1/4” collet $30.00 17 & 19mm mandrels use 3/8” collet (comes standard with OMF). $30.00 Other sizes available upon request.
What an O.M.F. machine can do for you.
48 Curves, 9 Flats
57 Flats
Amethyst curtesy Dalan Hargrave
Citrine courtesy Sumner Olson
Flat
Concave
